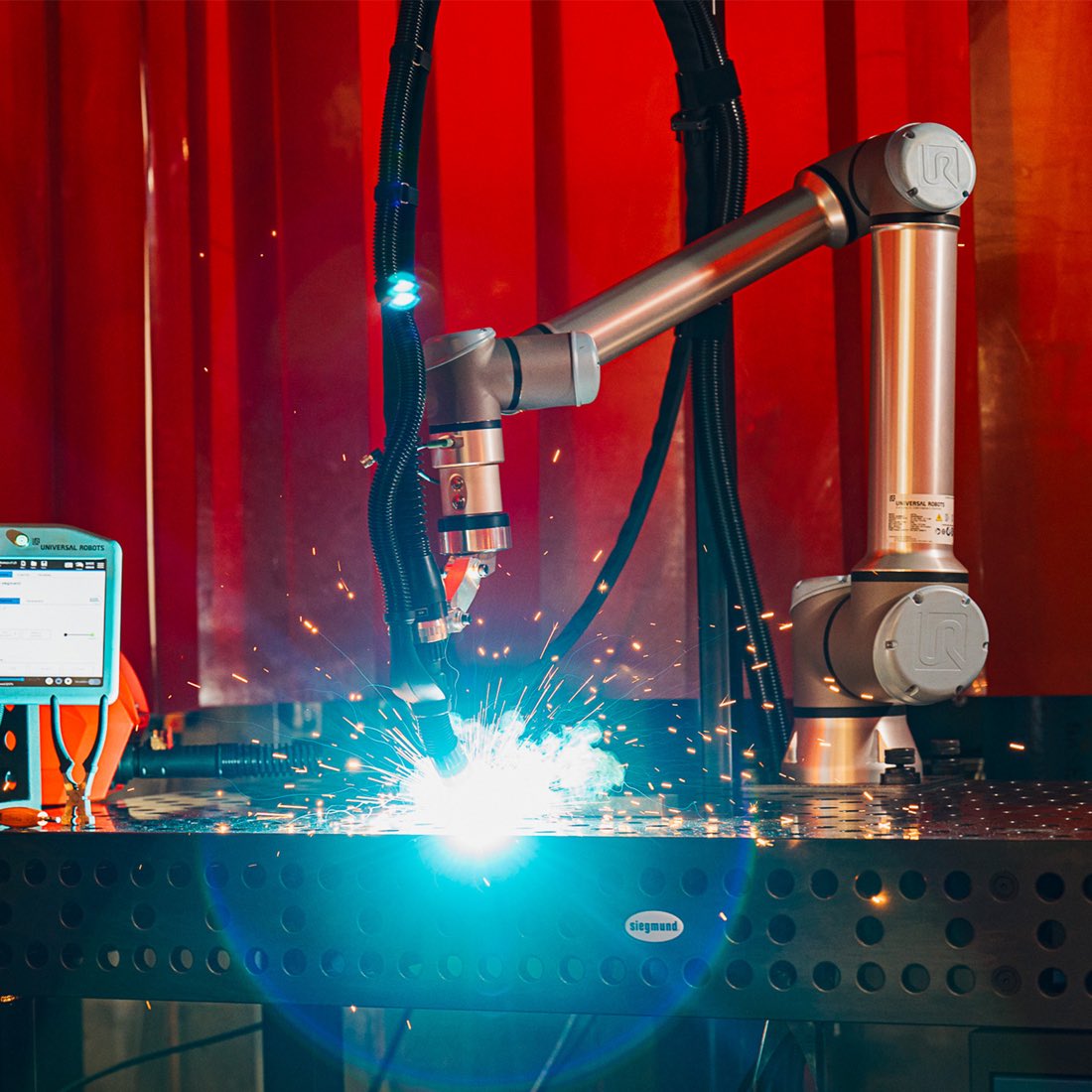

Collaborative robotic welding

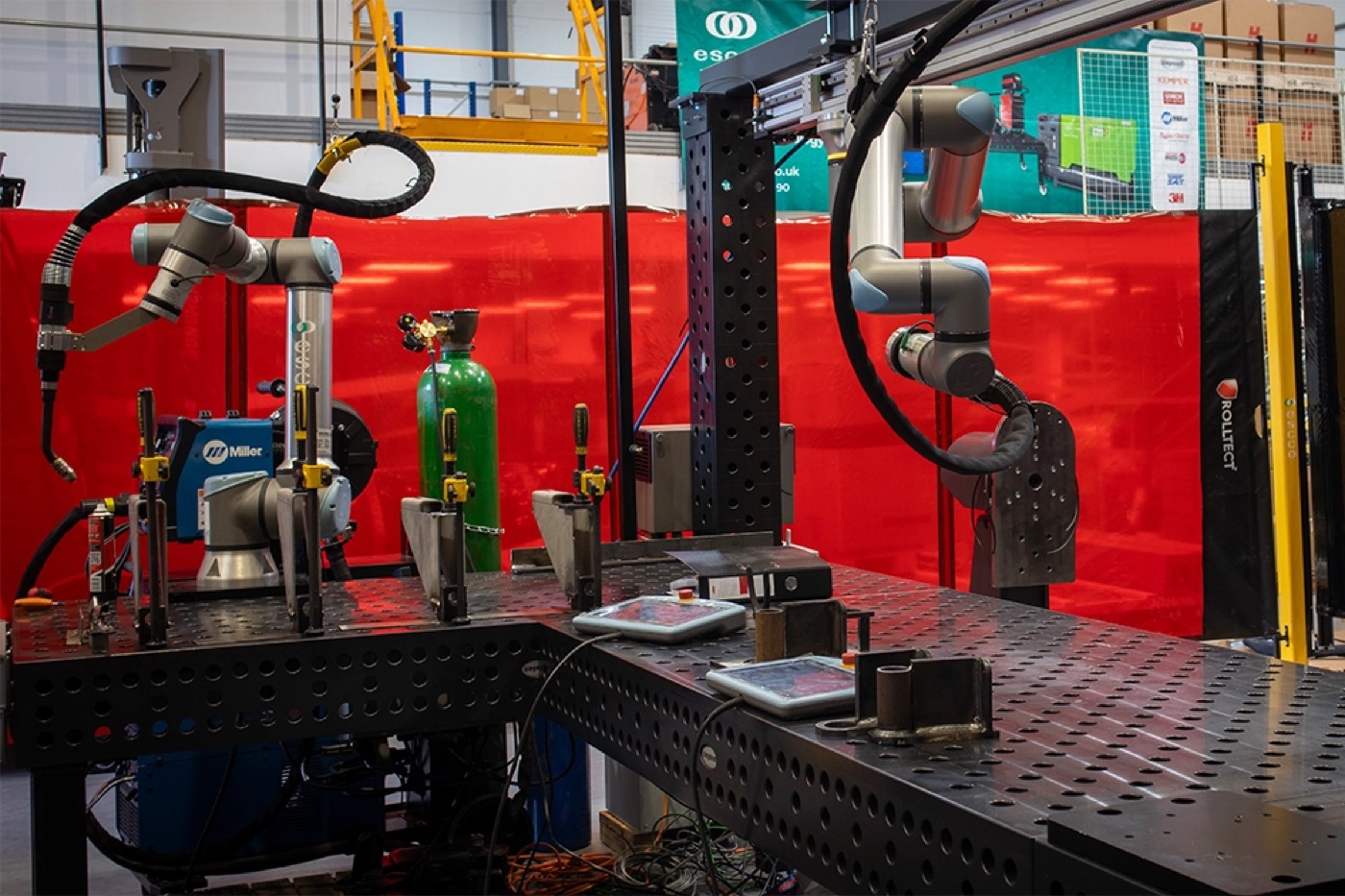

The entire welding robot package under one roof and available from stock. Universal Robots arm, Smooth Robotics software, Fronius or Miller MIG power source and a Siegmund Welding Table. Installed, commissioned, and your operators trained on it.
Increase production and reduce your lead times by automating your processes. Four things a Cobot Welding System can change on the shop floor.
Your skilled welders focus on the complex tasks that demand their unique skills, letting the cobot complete the repetitive and boring jobs.
Repetitive jobs automatedA typical welding job takes only a few minutes to set up and program, so larger jobs can be accepted with confidence.
Minutes to set upConsistent welds mean fewer reworks, less time cleaning weld spatter, and savings on raw material and labour.
Payback in 6 to 18 monthsAccurate to ± 0.05 mm per ISO 9283, which means unmatched repeatability and quality on every part that comes off the table.
± 0.05 mm, ISO 9283We visited Dan at Mettech Precision to get his honest feedback on how the Cobot Welding System has revolutionised production in his business.
“It’s just repeatable. It just does the same thing every time. We’ve gone from manually welding it to doing it four times faster with a cobot so it’s exponentially helped our production.”
Dan, Mettech Precision
Watch the case studyCobot Welding System customer testimonial, Mettech Precision
Every component comes from ESCCO, an authorised UK distributor for Universal Robots, on one order, with one point of contact. Configurations are customisable around the welder and the fixture table size your work needs. Watch the package walkthrough.
Six axis collaborative arm, 7.5 kg to 30 kg payload and reach between 950 mm and 1750 mm. Force sensing, collision detection and virtual safety planes as standard.
Built for welders. Teach the weld by hand, then run it. A job takes only a few minutes to set up and program.
An automated MIG power source matched to your material and thickness, in the configuration your work needs.

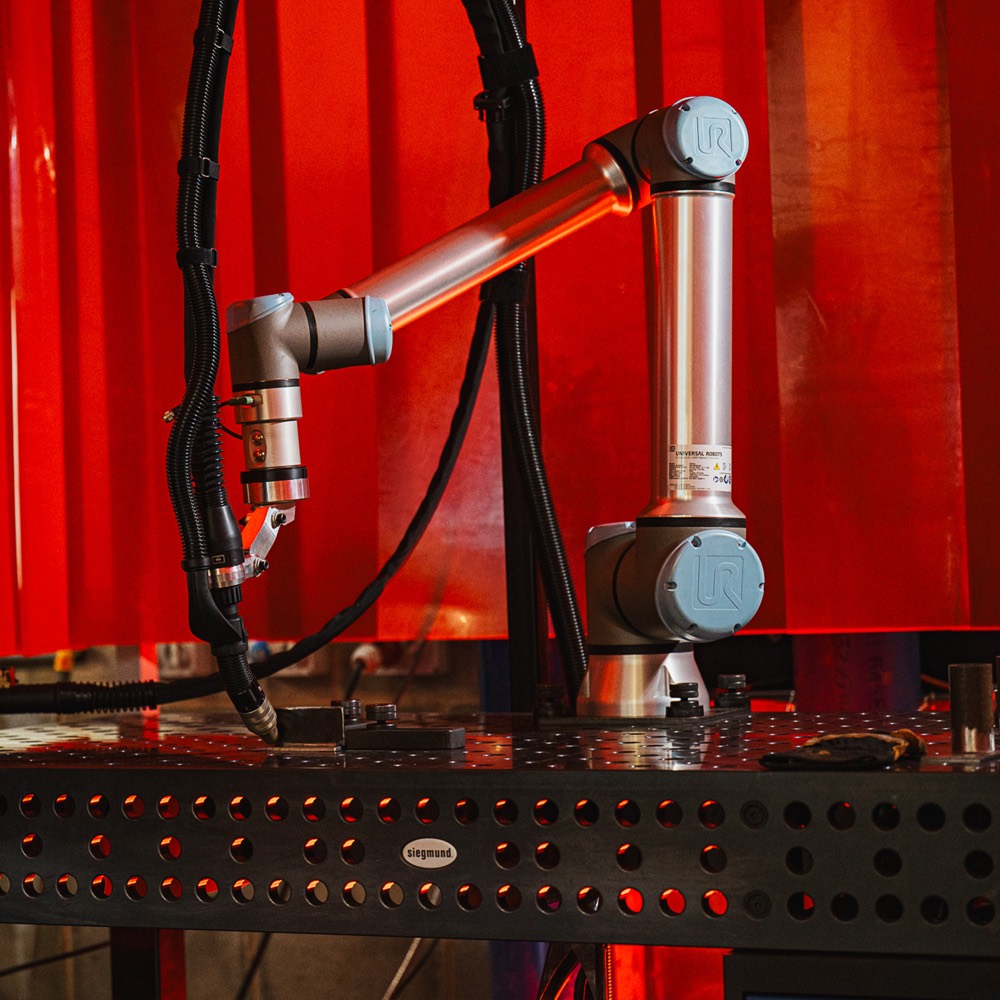

System 16, 22 or 28 fixturing so the part lands in the same place every cycle. This is what makes the repeatability real.
A fully enclosed welding cell where arc screening or floor space dictates it.
Using the same SmoothTool Software, your Cobot Welding System can also be used for Plasma Cutting, by simply changing the welding torch for a plasma torch.
Two numbers decide it: how heavy the torch and part handling is, and how far the arm has to reach across your table. Find your corner of the chart, then check the table.
Payload against reach, five arms
Each point is one Universal Robots arm supplied by ESCCO.
UR8 Long8 kg · 1750 mm
UR12e12.5 kg · 1300 mm
| Model | Payload | Reach | Footprint | Weight | Avg. power | Suits |
|---|---|---|---|---|---|---|
| UR7e | 7.5 kg | 850 mm | ∅ 149 mm | 18.4 kg | 200 W | Small parts, tight cells |
| UR8 LongMost popular | 8 kg | 1750 mm | ∅ 204 mm | 44.7 kg | 350 W | Longest reach, small footprint |
| UR12eMost popular | 12.5 kg | 1300 mm | ∅ 190 mm | 33.5 kg | 350 W | UR’s most popular model |
| UR20 | 20 kg | 1750 mm | ∅ 245 mm | 64 kg | 500 W | Longest reach, fastest |
| UR30 | 30 kg | 1300 mm | ∅ 245 mm | 63.5 kg | 300 W | Highest payload |
The entire welding robot package under one roof, available from stock.
ESCCO is uniquely positioned as the only company in the UK that can offer direct access to all of these major OEMs that make up a Cobot Welding System, under one roof. It arrives as a turnkey solution: onsite installation, commissioning and operator training included, with finance available.
ESCCO provides a cradle-to-grave approach to all projects and larger turn-key solutions, with a positive record for automation, consultancy, project management, installations and servicing.
In-house at our HQ in Hereford, via Teams or Zoom, or even on-site at your own facility.
Consultancy for your business and projects, including site surveys before anything is specified.
A dedicated in-house team of skilled service engineers for repairs, calibration, testing and annual servicing. No matter the distance.
Hire capital equipment and purchase goods with custom pricing and credit terms.
Tell us a little about your work and we will come back with a costed system and the arm it needs. If you are still scoping it out, answer what you can and leave the rest.
A member of the ESCCO automation team will come back to you with a costed system.
Send drawings or part details and we will come back with a costed system.

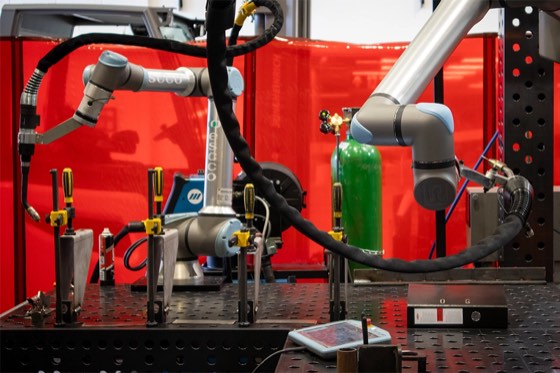

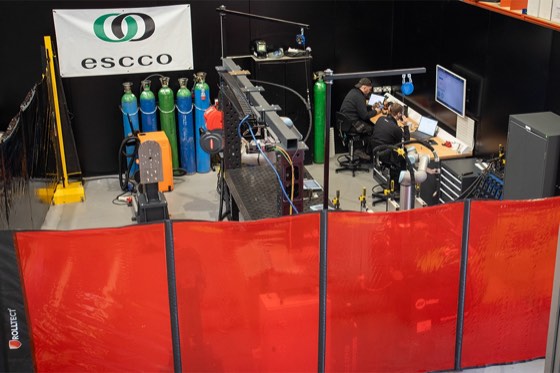

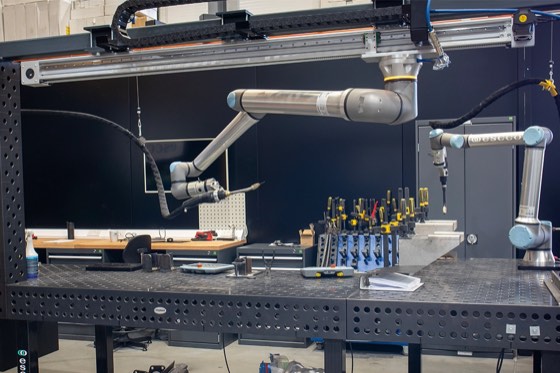

Demonstrations in-house at our Hereford HQ.
